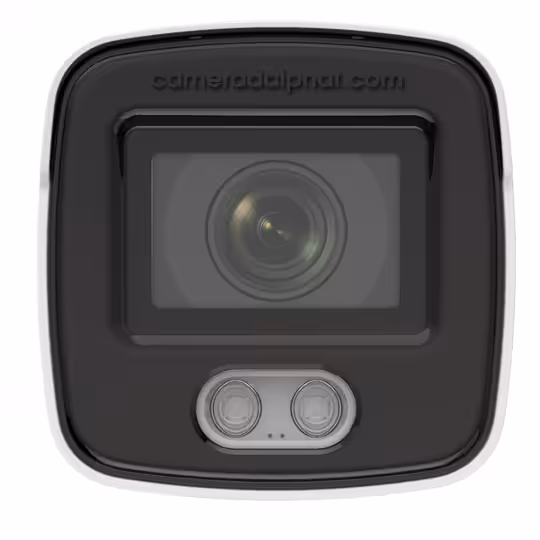

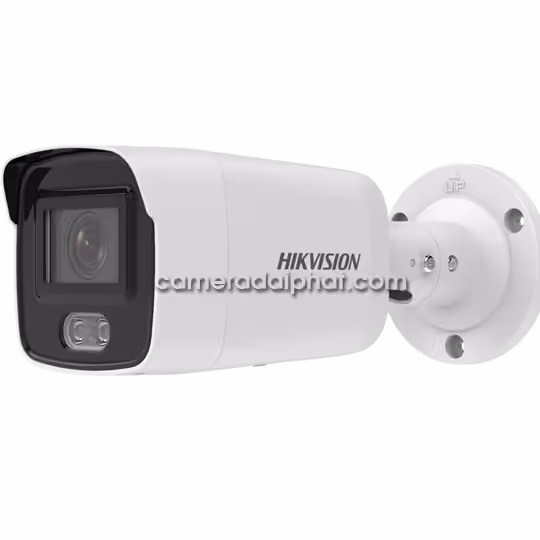

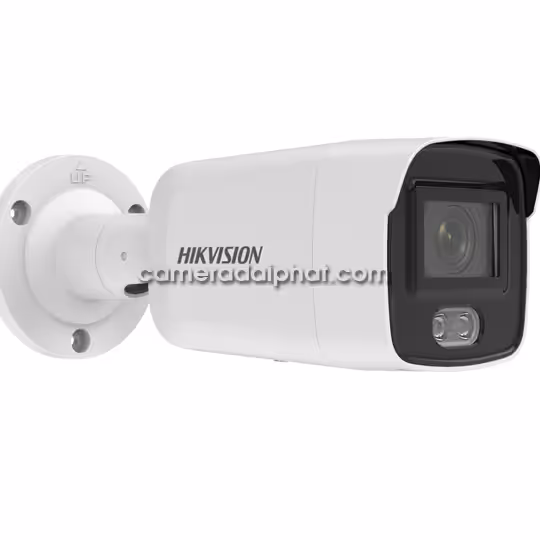

Camera HIKVISION DS-2CD2047G2-LU 4.0 MP FullColor

LIÊN HỆ LẮP ĐẶT CAMERA DS-2CD2047G2-LU

Hotline: 0938.677.699

Website: https://cameradaiphat.com

Fapage:

Kênh Youtube:

Google Map:

Camera:

• Image Sensor1/1.8″ Progressive Scan CMOS
• Max. Resolution2688 × 1520
• Min. IlluminationColor: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light
• Shutter Time1/3 s to 1/100,000 s
• Angle AdjustmentPan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°

Lens:

• Lens TypeFixed focal lens, 2.8, 4, and 6 mm optional
• Focal Length & FOV:
  • 2.8 mm, horizontal FOV 112°, vertical FOV 61°, diagonal FOV 134°
  • 4 mm, horizontal FOV 95°, vertical FOV 51°, diagonal FOV 115°
  • 6 mm, horizontal FOV 58°, vertical FOV 31°, diagonal FOV 69°

• Lens Mount: M16

• Iris Type: Fixed
• Aperture: F1.0
• Depth Of Field: 2.8 mm, 2.5 m to ∞ / 4 mm, 3.5 m to ∞ /6 mm, 7.5 m to ∞

• DORI: 2.8 mm, D: 58 m, O: 23 m, R: 11 m, I: 2 m / 4 mm, D: 77 m, O: 30 m, R: 15 m, I: 7 m / 6 mm, D: 115 m, O: 45 m, R: 23 m, I: 11 m

Illuminator:

• Supplement Light TypeWhite Light
• Supplement Light Range40 m
• Smart Supplement LightYes

Video:

• Main Stream: 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720) / 60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
• Sub-Stream: 50 Hz: 25 fps (640 × 480, 640 × 360) / 60 Hz: 30 fps (640 × 480, 640 × 360)
• Third Stream: 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) /60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

  *Third stream is supported under certain settings.

• Video Compression:

  – Main stream: H.265/H.264/H.265+/H.264+

  – Sub-stream: H.265/H.264/MJPEG

  – Third stream: H.265/H.264

  *Third stream is supported under certain settings.

• Video Bit Rate: 32 Kbps to 8 Mbps
• H.264 Type: Baseline Profile/ Main Profile/ High Profile
• H.265 TypeMain Profile
• Bit Rate ControlCBR/VBR
• Scalable Video Coding (SVC)H.264 and H.265 encoding
• Region Of Interest (ROI)1 fixed region for main stream and sub-stream

Audio:

• Audio Compression-U: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC
• Audio Bit Rate-U: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC)
• Audio Sampling Rate-U: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
• Environment Noise Filtering-U: Yes

Network:

• ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP
• Simultaneous Live ViewUp to 6 channels
• APIOpen Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK
• User/HostUp to 32 users. 3 user levels: administrator, operator and user
• SecurityPassword protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
• Network Storage

  MicroSD/SDHC/SDXC card (256 GB) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR)

  Together with high-end Hikvision memory card, memory card encryption and health detection are supported.

• ClientiVMS-4200, Hik-Connect, Hik-Central
• Web Browser

  Plug-in required live view: IE 10+

  Plug-in free live view: Chrome 57.0+, Firefox 52.0+

  Local service: Chrome 57.0+, Firefox 52.0+

Image:

• Image Parameters SwitchYes
• Image SettingsRotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
• Day/Night SwitchAuto, Schedule
• Wide Dynamic Range (WDR)130 dB
• SNR≥ 52 dB
• Image EnhancementBLC, HLC, 3D DNR

Interface:

• Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
• On-Board StorageBuilt-in micro SD/SDHC/SDXC slot, up to 256 GB
• Built-In Microphone-U: Yes
• Reset KeyYes

Event:

• Basic Event: Motion detection (human and vehicle targets classification), video tampering alarm, exception
• Smart Event:

  Line crossing detection, intrusion detection, region entrance detection, region exiting detection

  Scene change detection

• LinkageUpload to NAS/memory card/FTP, notify surveillance center, trigger recording, trigger capture, send email

• Deep Learning Function
• Face CaptureYes

General:

• Power

  12 VDC ± 25%, 0.5 A, max. 6 W, Ø5.5 mm coaxial power plug

  PoE: 802.3af, Class 3, 36 V to 57 V, 0.25 A to 0.15 A, max. 7.5 W

• Dimension215.2 mm × 78.8 mm × 78.6 mm (8.5″ × 3.1″ × 3.1″)
• Package Dimension315 mm × 137 mm × 141 mm (12.4″ × 5.4″ × 5.6″)
• Approx. 695 g (1.5 lb.)
• With Package WeightApprox. 1090 g (2.4 lb.)
• Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Startup And Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Language:

33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

• General FunctionAnti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter

Approval:

• EMC

  FCC SDoC (47 CFR Part 15, Subpart B);

  CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014);

  RCM (AS/NZS CISPR 32: 2015);

  IC VoC (ICES-003: Issue 6, 2016);

  KC (KN 32: 2015, KN 35: 2015)

• Safety

  UL (UL 60950-1);

  CB (IEC 60950-1: 2005 + Am 1: 2009 + Am 2: 2013, IEC 62368-1: 2014);

  CE-LVD (EN 60950-1: 2005 + Am 1: 2009 + Am 2: 2013, IEC 62368-1: 2014);

  LOA (IEC/EN 60950-1)

• EnvironmentCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
• ProtectionIP67 (IEC 60529-2013)
